Product features

• ? 7 inch color touch screen;

• ? Support multi language, convenient for different users;

• ? Built in environment automatic detection program, automatically detect the test environment and remind users;

• ? Built in international standard grade parameters, easy and fast operation;

• ? EUT intelligent detection;

• ? Rs232/usb interface, which can be controlled by PC and print test report.

Product parameters

• Product model:


  Surge waveform


  Open circuit voltage


  short-circuit current


  Surge polarity


  Phase angle


  Output impedance


  Coupling / decoupling network


  Surge coupling mode


  frequency


  Interval time


  Working power supply


  ambient temperature

• SUR T6


  Voltage wave: 1.2/50 us; Current wave: 8 /20 us


  0.2~6kV


  0.1 ~ 3kA


  Positive / negative, alternating positive and negative


  0~359 ° synchronous or asynchronous


  2q (common mode 12q2)


  Built in, three-phase five wire, 16A


  Differential mode 18uf, common mode 9uf /10q


  1~9999 times


  10~9999s


  AC220V 50/60Hz


  15 C~35 ℃

Product recommendation

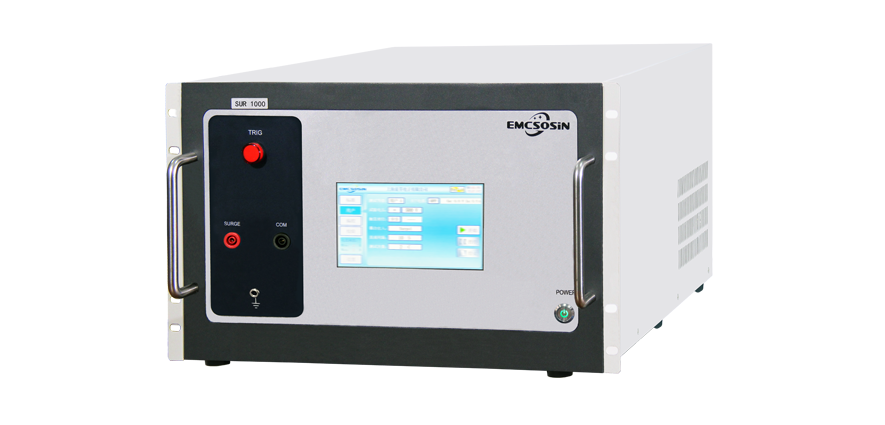

Lightning surge generator sur 1000

Model：SUR 1000

Lightning surge generator sur 1000 is an anti surge test product specially designed for semiconductor devices and communication products such as anti surge protection. The product meets the requirements of iec61000-4-5, gb/t17626.5, gr-1089-core and other relevant standards.
